Surpass Hobby ROCKET LED Program Card for Rock Crawler Gecko Series MINI 18 30A ESC Brushless Waterproof Electronic Speed Controller RC Car Vehicles Parts
Direct purchase from the factory
Checkout garantit sikur
Rigal b'xejn
Politika tat-tbaħħir
Politika tar-ritornRigal B'Xejn
Merħba għal Roymall, is-sit professjonali tiegħek għal xiri ta' rigali ta' kwalità għolja. Napprezzaw is-sapport tiegħek u rridu nuruk gratitudni billi noffru rigal b'xejn ma' kull ordni.Politika tat-Tbaħħir
Oġġetti jintbagħtu fi żmien 2-5 ġranet tax-xogħol. Ordni ta' aktar minn $9.9 jintbagħtu b'xejn.1. Politika tar-Ritorn
Oġġetti jistgħu jintirbu sa 40 jum. Oġġetti personalizzati ma jistgħux jintirbu.2.Politika tar-Rifużjoni
Ir-rimi jintirbu bl-istess metodu ta' ħlas oriġinali.Description:
Brand:Surpass Hobby
Item Name:Rocket LED Program Card Gecko Series MINI 18
Product Size:70*43*13mm
Bag Size:90*80-85mm
Net Weight:24G
Gross Weight:28G
Power Supply Mode:ESC BEC
Compatible ESC:Rock crawler gecko series MINI 18 30A ESC brushless waterproof electronic speed controller
To begin, connect the ESC battery wires to a charged battery, then connect the BEC
wire 3pin wire to the program card "S+-"port (3pin port). Turned on the ESC, the
programming card will automatically read the ESC settings, and the setting items
of the programming card will display 1 to 15 successively, indicating that the
connection is successful. You can start programmingESC. (if it is not displayed, it
means that the connection is unsuccessful, please try to turn offESCrepeatedly,
reconnect the programming card and turn on ESC again until it is successful)

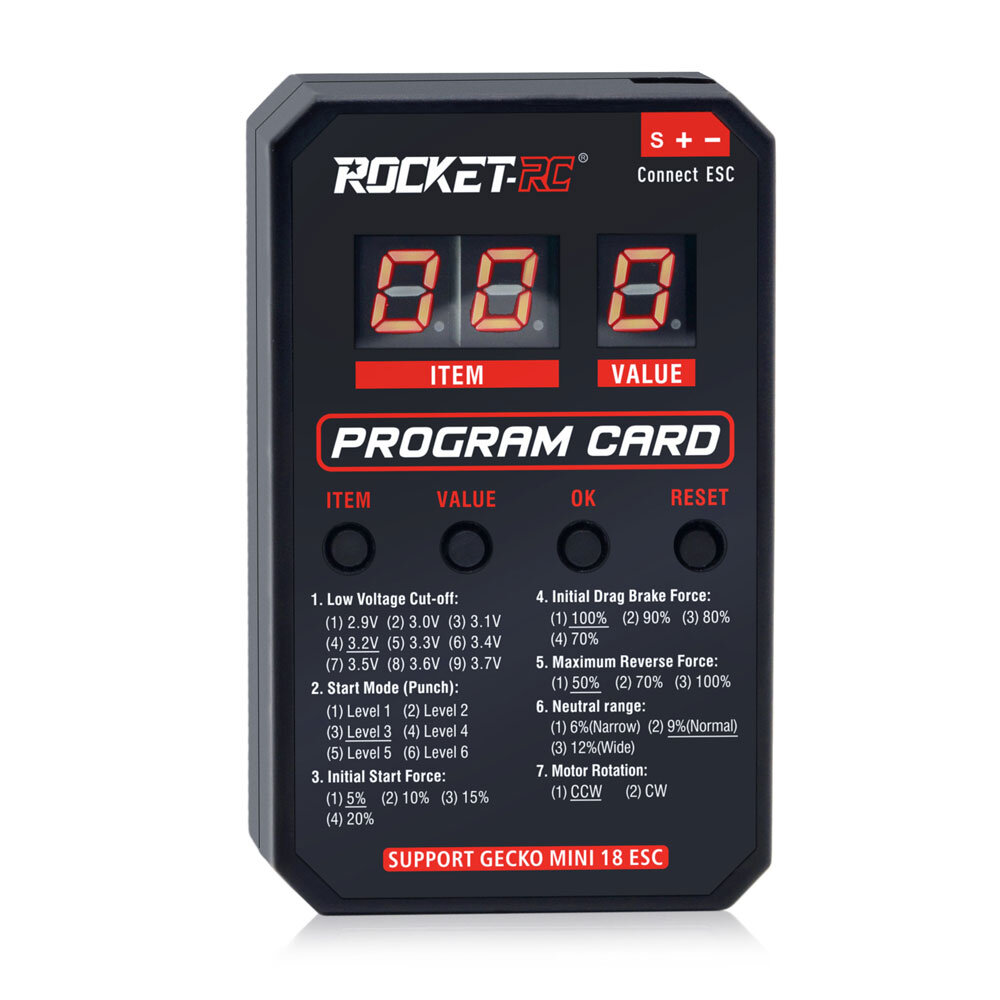

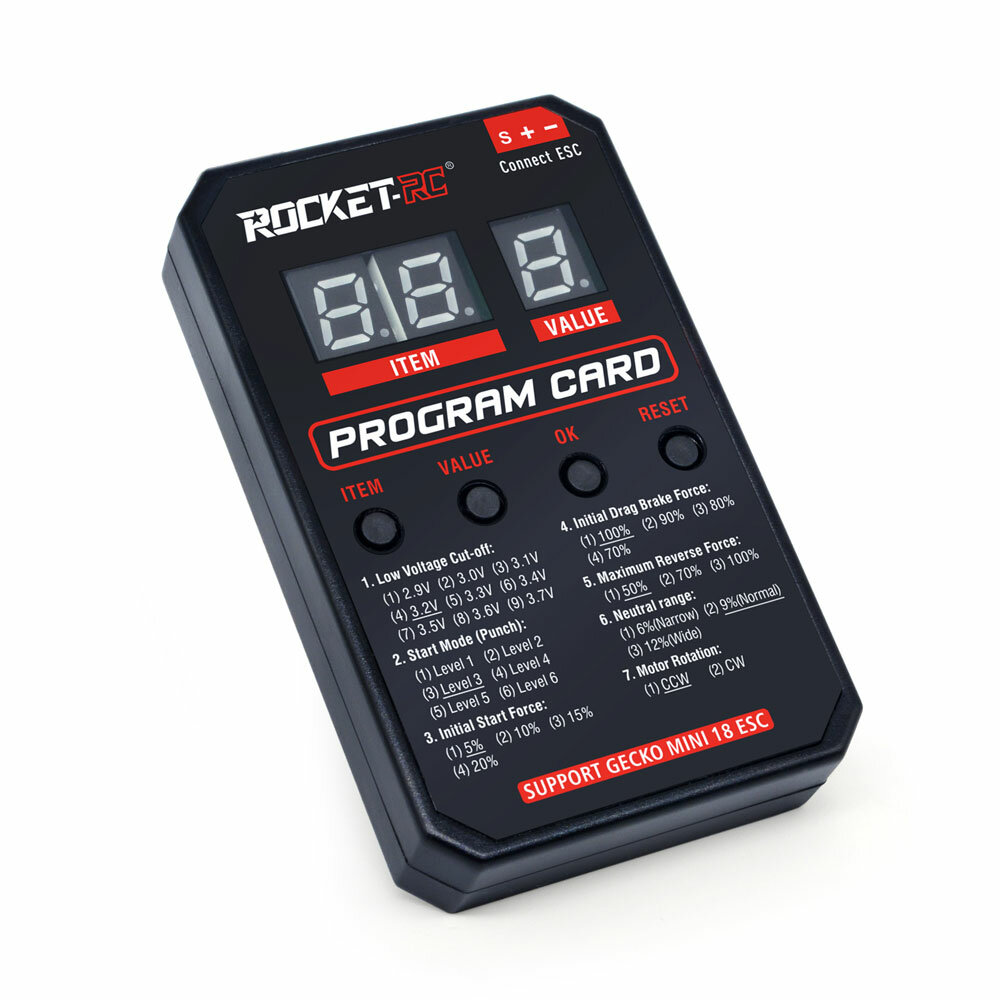

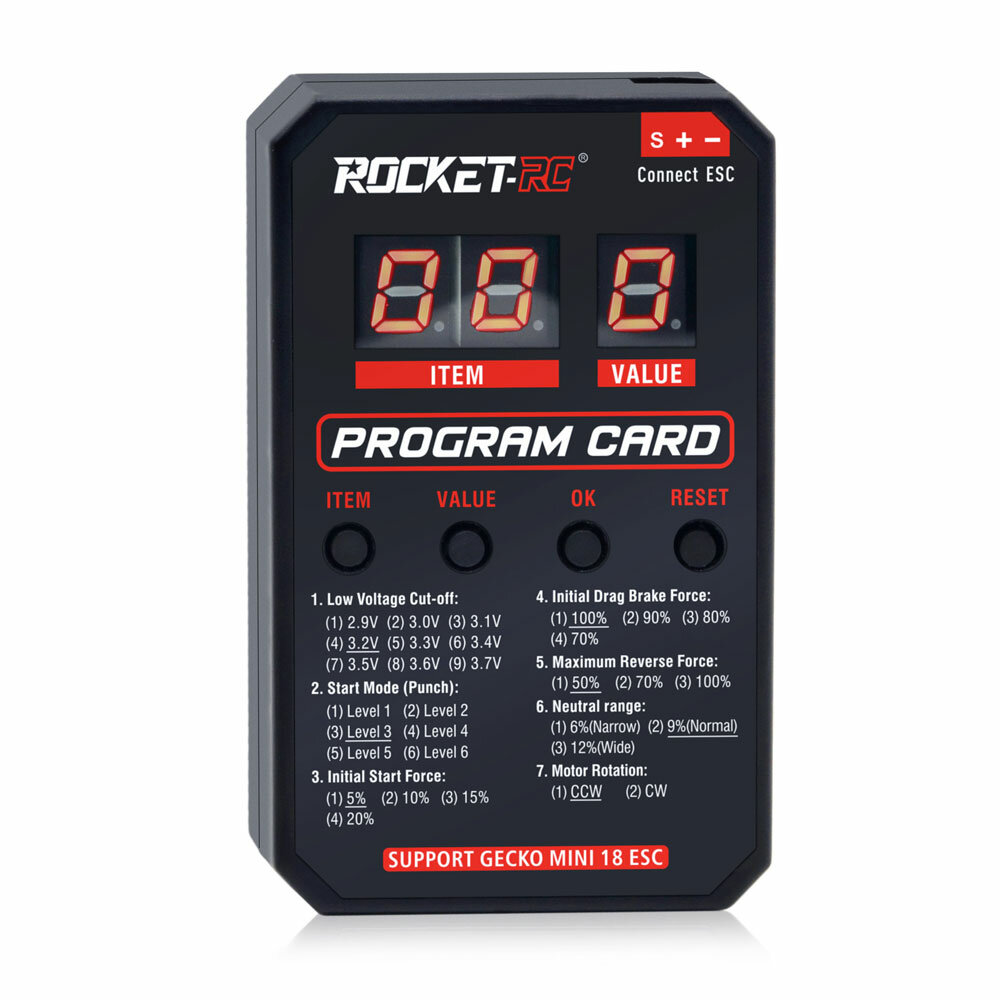

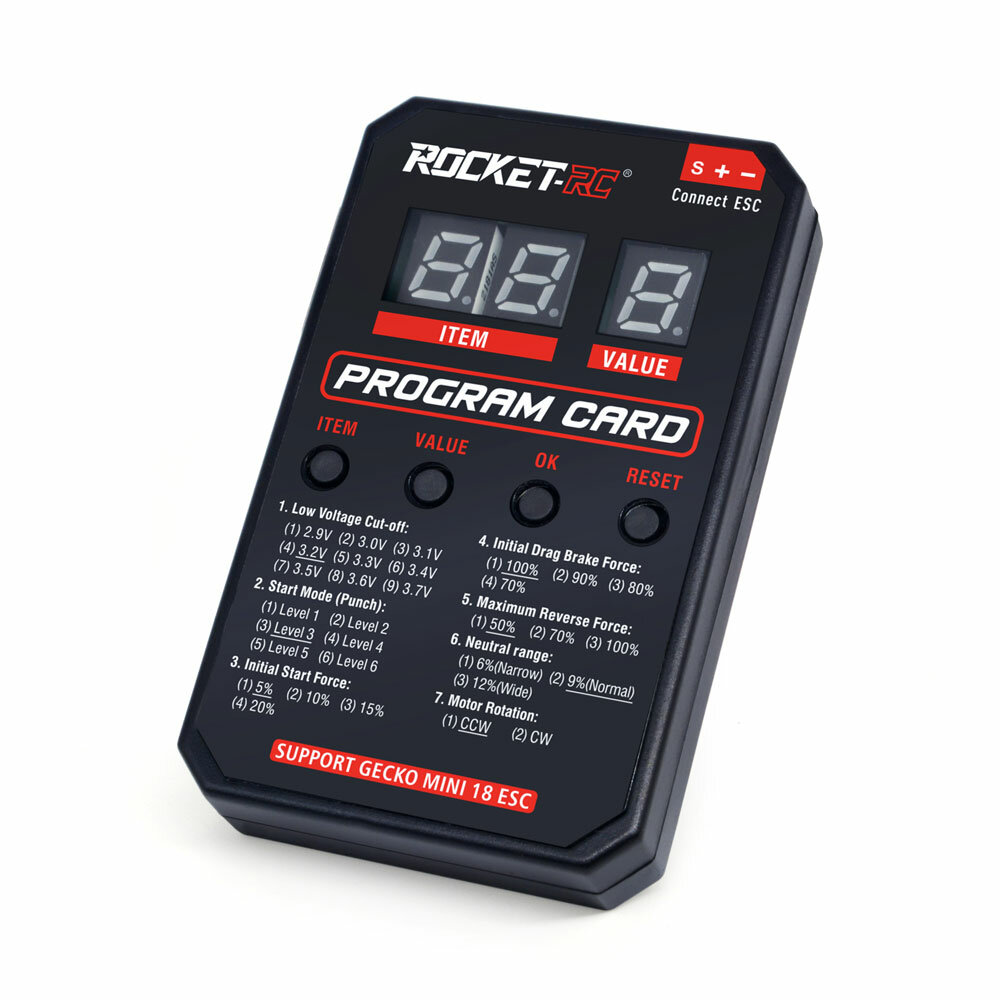

TIPS! Program card is done using the 4 buttons below on the led, The function of
each button start from right hand side areITEM,VALUE, OK and RESET.
Please refer to the menu below to program the function settings you need.
"ITEM" button-go to next item to sellect.
"VALUE" button-go to next value select.
"OK" buttongo to confirm your select.
"RESET" button-go back to factory setup.
Program Manual:Please click here
Package Included:
1x Rocket LED Program Card Gecko Series
